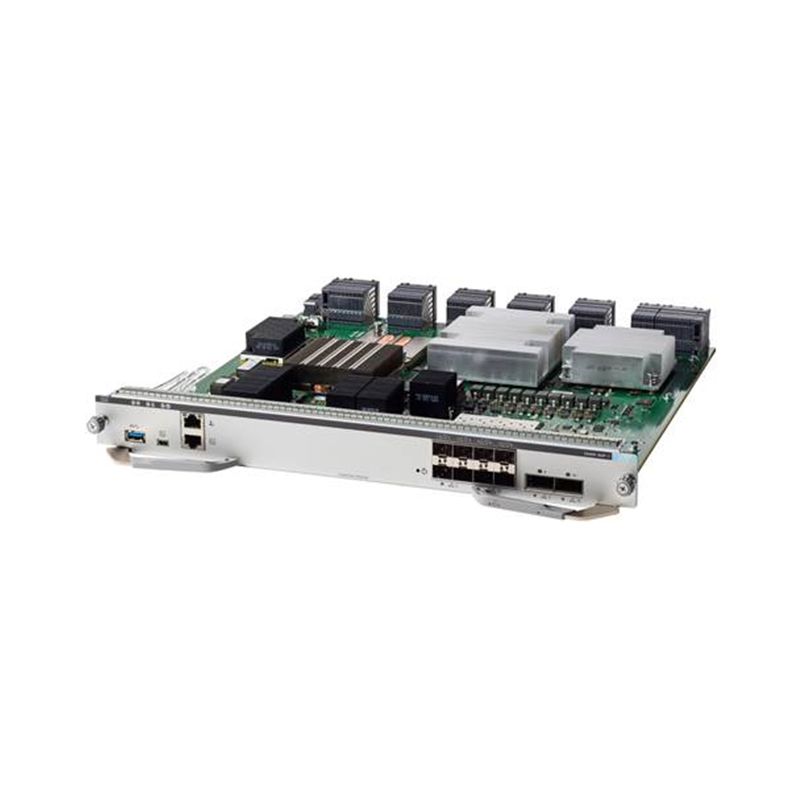

C9400-SUP-1 Specification |
||
|
Centralized wired capacity |
Up to 1.44 Tbps |
|
|
Per-slot switching Capacity |
80 Gbps |
|
|
Total number of MAC addresses |
Up to 64K |
|
|
Total number of IPv4 routes (ARP plus learned routes) |
Up to 112K |
|
|
FNF entries (v4/v6) |
Up to 384K/192K |
|
|
DRAM |
16 GB |
|
|
Flash |
10 GB |
|
|
VLAN IDs |
4096 |
|
|
SSD Capacity |
960 GB |
|
|
Total Switched Virtual Interfaces (SVIs) |
4,000 |
|
|
Jumbo frame |
9216 bytes |
|
|
Forwarding Rate |
● 900 Mpps for IPv4
● 450 Mpps for IPv6 |
|
|
IPv4 Routing Entries |
Up to 112K |
|
|
IPv6 Routing Entries |
Up to 56K |
|
|
Multicast Routes |
Up to 16K |
|
|
QoS Hardware Entries |
Up to 18K |
|
|
Security ACL Hardware Entries |
Up to 18K |
|
|
Packet Buffer |
96 MB |
|
|
Physical specifications |
(H x W x D): 1.6 x 14.92 x 14.57 in. (4.06 x 37.90 x 37.00 cm) Weight: 10 lbs (4.5 kg) |
|
|
Operating temperature |
Normal Operating Temperature and Altitudes: ● 27° to 109°F (-5 to +45ºC), up to 6,000 feet (1800 m) ● 27° to 104°F (-5 to +40ºC), up to 10,000 feet (3000 m) ● *Minimum ambient temperature for cold startup is 0ºC Short-Term Exceptional Conditions: ● 27° to 119°F (-5 to +55ºC), up to 6,000 feet (1800 m) ● 27° to 114°F (-5 to +50ºC), up to 10,000 feet (3000 m) ● **Not more than following in one-year period: 96 consecutive hours, or 360 hours total, or 15 occurrences |
|
|
Storage temperature |
40° to 158°F (-40° to 70°C) |
|
|
Relative humidity operating and nonoperating noncondensing |
10 to 95 percent, noncondensing |
|
|
Altitude |
-60 to 3000m |
|
|
MTBF |
302,000 hours |
|
