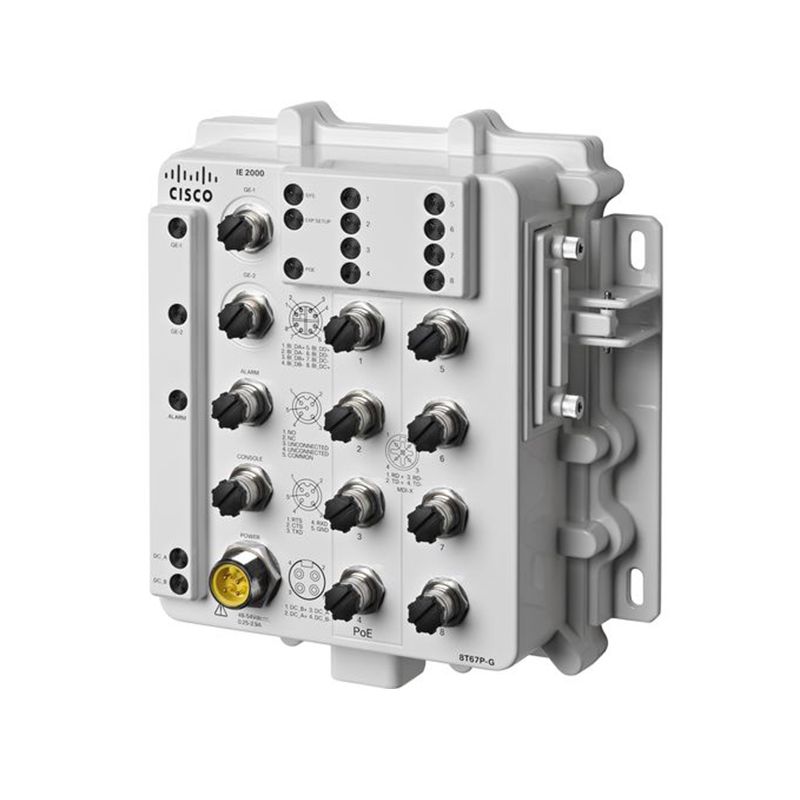

IE-2000-8T67-B Specification |
|
| Total Ports | 8 |
| 100 MB D-code | 8 |
| Manufacturing license | LAN Base |
| Dimensions (H x W x D) | 9.5” x 9.32” x 3.9” (241.7 x 236.7 x 99 mm) |
| Weight | 7.19 lbs. (3.26 kg) |
| Hardware | ● 256MB DRAM with ECC memory
● IEEE 1588v2 FPGA ● 64MB on-board flash memory ● 1GB removable SD flash memory card (optional) |
| Alarm | ● Alarm-one alarm output relay using an M12 A Coded 5 Pin connector (Max. rated: 24VDC @ 1A/48VDC @ 0.5A) |
| Input voltage supported | ● 9.6-60VDC
● PWR-IE160W-67-DC=: 18-60VDC, 12A |
| Power rating | ● 0.023KVA |
| Power consumption | ● 7-17W |
| Connectors and cabling | Data cable
● Copper 100 Base-T M12 D coded 4-pole (pin) cable connector ● Copper GE M12 X coded-8-pole (pin)-cable connector Alarm cable ● M12 A-Coded 5-Pin Cable Console cable ● M12 A Coded 5-Pin connector Power supply cables ● Power cable for power source, Mini-Change A-Size single-ended cord set, 4 poles, female to pigtail, 16 AWG PVC cable. ● Power cable to IE2000 IP67 switch: Mini-Change A-size double-Ended Cordset, 4 poles male to female. 16 AWG, TPE cable. ● Power cable for AC-DC power source, Mini-change A-size single-ended cord set, 3 pins, female insert on one end to pigtail, 16 AWG PVC cable. ● Power cord from power source to power supply: 2 hole female power cord to open for input DC connector. |
| Operating temperature | ● -40°C to +75°C
● -40°C to +70°C (vented enclosure operating) ● -40°C to +60°C (sealed enclosure operating) ● -34°C to +75°C (200 LFM or more fan- or blower-equipped enclosure operating) ● -40°C to +85°C (type tested to +85°C for 16 hours) ● Altitude: Up to 13,800 feet (4570 meters) |
| Storage Temperature | ● -40°C to +85°C
● IEC 60068-2-14 ● Altitude: Up to 13,800 feet or 4,200 meters |
| MTBF | ● Mean time between failures: 374,052 hours (42.7 years) |
