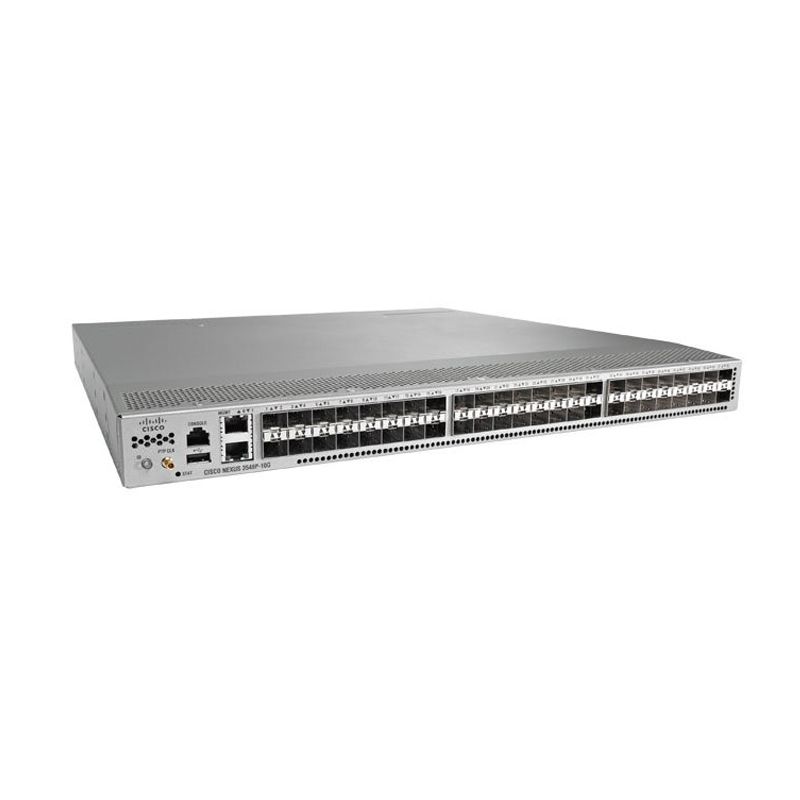

N3K-C3548P-10GX Specification |
||||
| Physical | ● 48 fixed SFP+ ports (1 or 10 Gbps)
● Dual redundant hot-swappable power supplies ● Four individual redundant hot-swappable fans ● One 1-PPS timing port, with the RF1.0/2.3 QuickConnect connector type* ● One 10/100/1000-Mbps management port ● One RS-232 serial console port ● Two USB ports ● Locator LED ● Locator LED button |
|||
| Performance | ● 960-Gbps switching capacity
● Forwarding rate of 720 mpps ● Line-rate traffic throughput (both Layer 2 and 3) on all ports ● Configurable MTUs of up to 9216 bytes (jumbo frames) |
|||
| Typical operating power | ● 112W | |||
| Maximum power | ● 213W | |||
| Typical heat dissipation | ● 383 BTUs per hr
|
|||
| Maximum heat dissipation | ● 727 BTUs per hr | |||
|
Hardware Specifications |
||||
|
Mode |
Normal Mode |
Warp Mode |
||
| Hardware tables and scalability | Number of MAC addresses | 64,000 | 8000 | |
| Number of IPv4 unicast routes | 24,000 | 4000 | ||
| Number of IPv4 hosts | 64,000 | 8000 | ||
| Number of IPv4 multicast routes | 8000 | 8000 | ||
| Number of VLANS | 4096 | |||
| Number of ACL entries | 4096 | |||
| Number of spanning-tree instances | Rapid Spanning Tree Protocol (RSTP): 512
Multiple Spanning Tree (MST) Protocol: 64 |
|||
| Number of EtherChannels | 24 | |||
| Number of ports per EtherChannel | 24 | |||
| Buffer size | 6 MB shared among 16 ports; 18 MB total | |||
| Boot flash memory | 2 GB (3524P and 3548P models)
4 GB (3524X and 3548X models) |
|||
| Power | Number of power supplies | 2 (redundant) | ||
| Power supply types | ● AC (forward and reversed airflow)
● DC (forward and reversed airflow) |
|||
| Input voltage | 100 to 240 VAC | |||
| Frequency | 50 to 60 Hz | |||
| Power supply efficiency | 89 to 91% at 220V | |||
| Cooling | Forward and reversed airflow schemes
● Forward airflow:Port-side exhaust (air enters through fan tray and power supplies and exits through ports) ● Reversed airflow: Port-side intake (air enters through ports and exits through fan tray and power supplies) Four individual, hot-swappable fans (3+1 redundant) |
|||
| Environment | Dimensions (height x width x depth) | 1.72 x 17.3 x 18.38 in. (4.36 x 43.9 x 46.7 cm) | ||
| Weight | 17.4 lb (7.9 kg) | |||
| Operating temperature | 32 to 104° F (0 to 40°C) | |||
| Storage temperature | -40 to 158° F (-40 to 70°C) | |||
| Relative humidity (operating) | ● 10 to 85% noncondensing
● Up to 5 days at maximum (85%) humidity ● Recommend ASHRAE data center environment |
|||
| Relative humidity (nonoperating) | 5 to 95% noncondensing | |||
| Altitude | 0 to 10,000 ft (0 to 3000m) | |||
| Mean time between failure (MTBF) | 317,030 hours | |||
