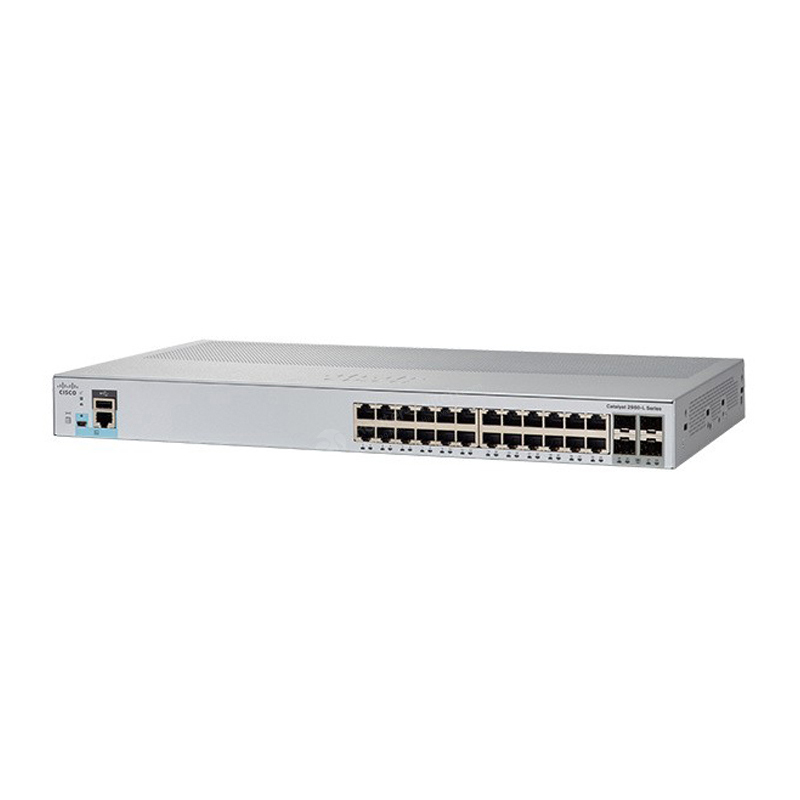

WS-C2960L-24TS-LL Specification |
|
| Configurations | |
| 10/100/1000 Ethernet Ports | 24 |
| Uplink Interfaces | 4 SFP |
| Available PoE Power | – |
| Fanless | Y |
| Dimensions (H x D x W) | 1.73 x 9.45 x 17.5 in. (4.4 x 24 x 44.5 cm) |
| Net Weight | 6.61 lb (3.0 kg) |
| Console Ports | |
| RJ45 Ethernet | 1 |
| USB mini-B | 1 |
| USB-A port for storage and Bluetooth console | 1 |
| Memory and Processor | |
| CPU | ARMv7 800 MHz |
| DRAM | 512 MB |
| Flash memory | 256 MB |
| Performance | |
| Forwarding bandwidth | 28 Gbps |
| Switching bandwidth | 56 Gbps |
| Forwarding rate (64-byte L3 packets) | 41.67 Mpps |
| Unicast MAC addresses | 8K |
| Maximum active VLANs | 64 |
| VLAN IDs available | 4094 |
| Maximum STP instances | 64 |
| Maximum SPAN sessions | 1 |
| MTU-L3 packet | 9198 bytes |
| Jumbo Ethernet frame | 10,240 bytes |
| MTBF in hours (Data) | 2,412,947 |
| MTBF in hours (PoE) | 909,838 |
